The PiBike
A Project to upgrade a simple exercise bike into something a bit more fun...

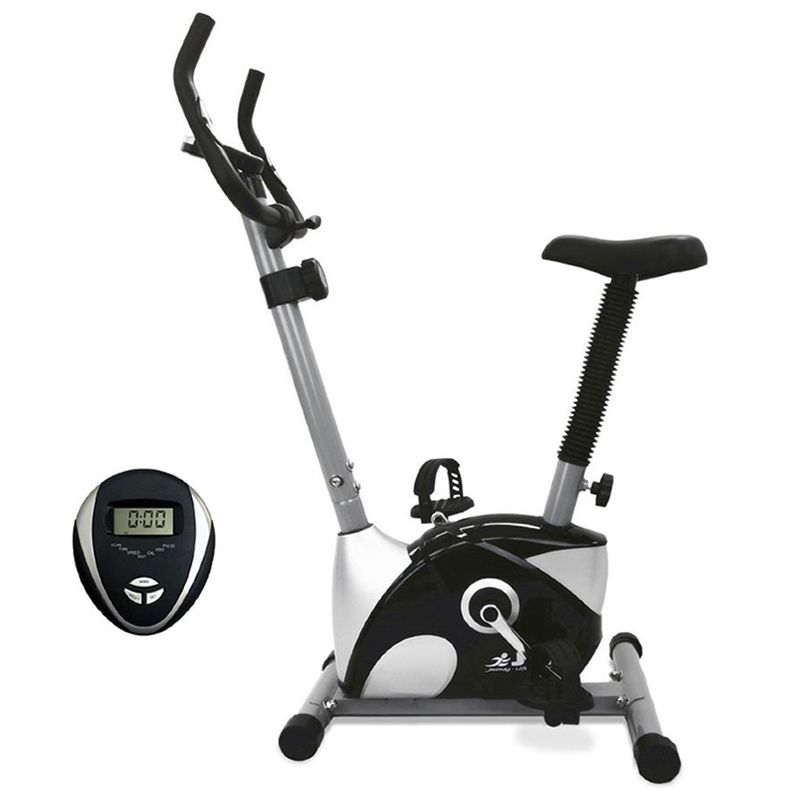

Do you have an exercise bike like this?
I have used this exercise bike quite a bit but it is a little......boring. You get a read out of your effort as numbers on a little LCD display that shows distance, speed and calories etc. It also reads your pulse.
The bike itself has a large knob that allows you to set the resistance.
Then one day the LCD unit failed. I think the circuit board got some sweat on it and corroded. I tried to fix it but it seems to be dead.
So I thought I'd have a go at replacing it with a raspberry pi.
The original head unit is connected to the bike via three connections. Two of them are to the hand sensors that read your pulse. I ignored these.
The third is connected to a switch that closes every time the pedal rotates. Using this I can connect the bike via a small interface circuit connected to the GPIO pins on the Pi.

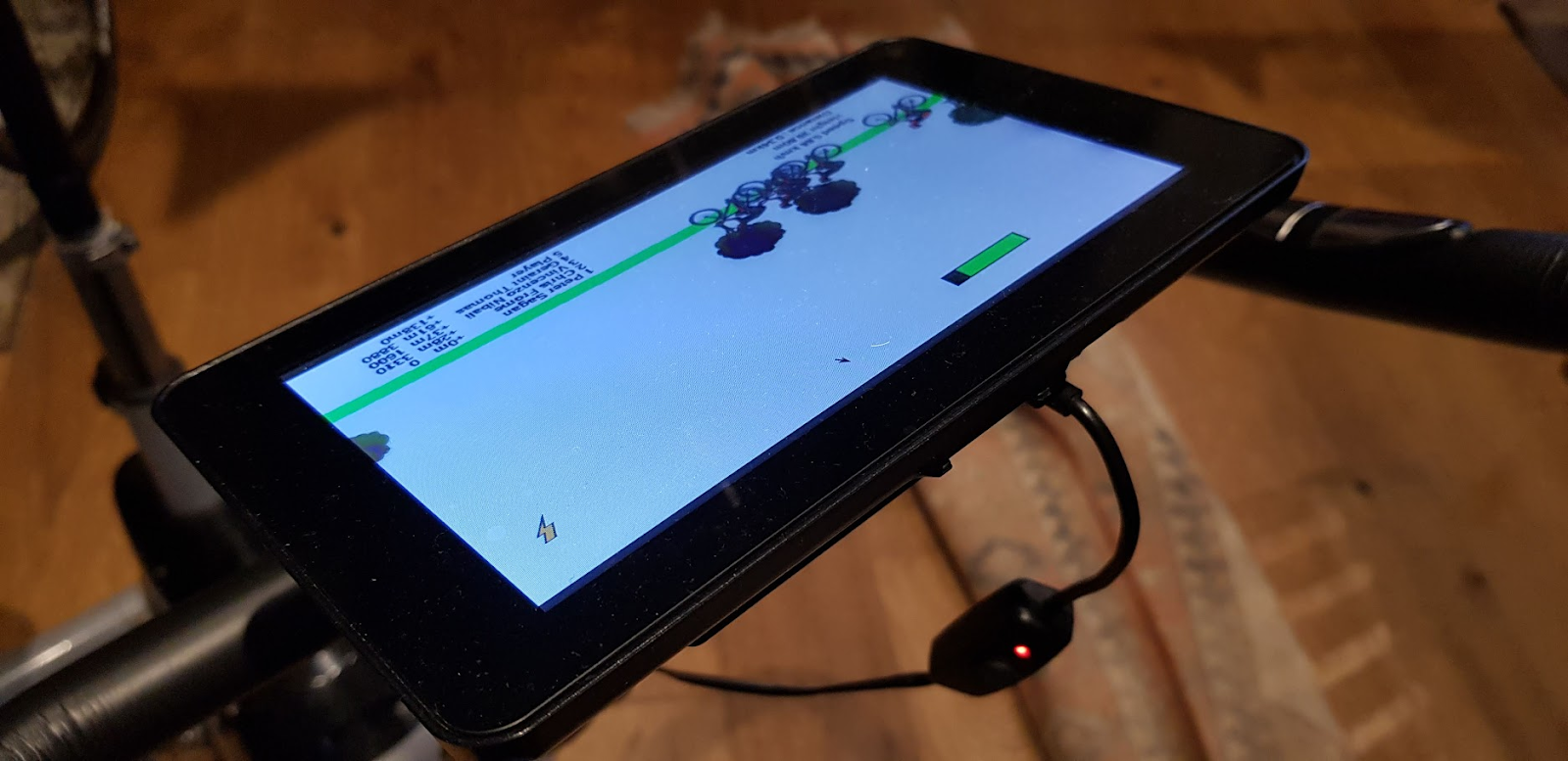

I used the 7" LCD colour screen for the raspberry pi and mounted it where the old head unit used to sit. You don't have to use this screen, any screen will do. I've even had it running on the pi and used VNC to connect to the pi so that I could see the race on my phone!
The screen I used is the 'Official' raspberry pi 7" touchscreen from here:
It currently costs £60 plus £12 for a case. No doubt there are cheaper options out there.
The Raspberry Pi then displays an avatar for 'you' along with some computer oponents and you then enters you into a 'race' against the other riders. You can choose the length of the race. The course goes up and down hills and your speed will be affected by how fast you pedal, the gradient you are riding on and the aero-gains you can get by riding behind the other riders.
Obviously on this cheap exercise bike the pi cannot control the resistance as this is controlled by a large mechanical knob on the bike, so it is up to you how hard you want to work by setting this at the start.
For the software I simply took the latest raspberry pi image from the Raspberry Pi org here:
Included in the latest O/S are all the libraries need for GPIO and 'PyGame' which is a simple framework for writing games. The code for the game is written in Python.
The images I used are as follows along with their pixel sizes:
bikebluesmall.gif 113x80:
bikeredsmall.gif 113x80:
bikegreysmall.gif 113x80:
tree.gif 84x95:
giftshop.gif 168x132
cafe.gif 138x118:
bookshop.gif 156x130:
finish.gif 156x130:
flamerouge.gif 158x197:
crowd.gif 355x103:
podium.gif 800x450
The images don't have to be exactly these sizes but try to get close to them or things may look a little odd. You can source your own pictures.
The player bike is the 'red' rider and the blue rider is used for the computer bikes. The 'grey' bike is used for when the player crosses the finish line.
As you ride you'll see a green/black bar at the top which shows your 'aero' bonus when you are benefitting from riding in another bike's wind shadow. Keeping this in the black should mean you can go faster for less effort. Similarly the other bikes will benefit from being in the draft of a bike in front of them and will recover energy as they follow you. Each computer rider also has a random 'attack' period that they will use at some point in the race - so watch out for a break-away forming. Try not to let them get away!
Here are the python files. Create a folder in /home/pi called 'bike' and place all the python files and image files in there. Then to run just enter:
> python race.py
If you want this to run at start up then edit the file /etc/rc.local on the pi and insert a line to run the python program before the line that says 'exit 0'. It should look something like this:
#!/bin/sh -e
#
# rc.local
#
# This script is executed at the end of each multiuser runlevel.
# Make sure that the script will "exit 0" on success or any other
# value on error.
#
# In order to enable or disable this script just change the execution
# bits.
#
# By default this script does nothing.
# Print the IP address
_IP=$(hostname -I) || true
if [ "$_IP" ]; then
printf "My IP address is %s\n" "$_IP"
fi
python /home/pi/bike/race.py &
exit 0
#
# rc.local
#
# This script is executed at the end of each multiuser runlevel.
# Make sure that the script will "exit 0" on success or any other
# value on error.
#
# In order to enable or disable this script just change the execution
# bits.
#
# By default this script does nothing.
# Print the IP address
_IP=$(hostname -I) || true
if [ "$_IP" ]; then
printf "My IP address is %s\n" "$_IP"
fi
python /home/pi/bike/race.py &
exit 0
Bike.py:
import time
import math
class Bike:
def __init__(self, id, name, power, sprint, rotation, attackdist, attackpower, attacklength):
self.Mass=100
self.Energy=0
self.Distance=0
self.id = id
self.name = name
self.power = power
self.sprint = sprint
self.rotation = rotation
self.aerofactor = 0.0
self.AirResistForce=0.08
self.AttackDistance = attackdist
self.AttackLength = attacklength
self.AttackPower = attackpower
self.FinishTime = 0
self.Finished = False
self.RecoveryPower = 0
def GetName(self):
return self.name
def GetId(self):
return self.id
def GetRotation(self):
return self.rotation;
def GetAeroFactor(self):
return self.aerofactor
def ReduceRecoveryPower(self, change):
self.RecoveryPower = self.RecoveryPower - change
if self.RecoveryPower < 0:
self.RecoveryPower = 0
def IncreaseRecoveryPower(self, change):
self.RecoveryPower = self.RecoveryPower + change
def GetRecoveryPower(self):
return self.RecoveryPower
def SetRotation(self, r):
if r>self.rotation:
self.rotation = self.rotation + 1
if r<self.rotation:
self.rotation = self.rotation - 1
def SetFinishTime(self, timefin):
# record the finish time - but only if it hasn't already been set. This allows us to call this repeatedly nce the rider passes the finish
# without constantly updating the time.
if self.FinishTime == 0:
self.FinishTime = timefin
self.Finished = True
def GetFinishTime(self):
return self.FinishTime
def GetFinished(self):
return self.Finished
def AddEnergy(self, e):
self.Energy = self.Energy + e
if self.Energy < 0:
self.Energy = 0
def SubtractEnergy(self, e):
if self.Energy < e:
self.Energy=0
else:
self.Energy = self.Energy - e
def GetEnergy(self):
return self.Energy
def GetMass(self):
return self.Mass
def GetSpeed(self):
speed = math.sqrt(2*self.Energy/self.Mass) *0.7
return speed
def GetDistance(self):
return self.Distance
def GetPower(self):
return self.power
def GetSprint(self):
return self.sprint
def Update(self, Bikes, timediff):
bikespeed = self.GetSpeed()
air_resistance = bikespeed * bikespeed * self.AirResistForce
factor = 1.0
# if the bike is in front of this one then it might give some shelter:
for b in Bikes:
if b.GetId()!=self.id:
# the bike 'position' is actually at the back of the image
# the image is actually 100 pixels wide (50m long!)
# so we add a bit to the position of this bike to get a rough idea of where the front wheel is
frontofbike = self.GetDistance()*1000 + 35
backofotherbike = b.GetDistance() * 1000
otherbikegap = backofotherbike - frontofbike
if (otherbikegap<50 and otherbikegap>0):
# multiply the aero factor from this bike with what we have so far - this will get us the cumulative effect of all the bikes in front
# of this one...
factor = factor * otherbikegap/50
# finally multiply the air resistance by the calculated factor. If we have no bikes in front then this will still be 1.0
air_resistance = air_resistance * (factor*0.75+0.25)
self.aerofactor = factor
air_resist_energy = air_resistance/timediff
self.SubtractEnergy(air_resist_energy)
# ...and friction, which will be proportional to speed:
friction = bikespeed * 0.1
friction_energy = friction / timediff
self.SubtractEnergy(friction_energy)
bikespeed = self.GetSpeed()
self.Distance = self.Distance + (bikespeed/3600)*timediff
if ((self.Distance*1000)>self.AttackDistance and (self.Distance*1000)<(self.AttackDistance+self.AttackLength)):
self.AddEnergy(self.AttackPower*timediff)
Race.py:
import math
class Bike:
def __init__(self, id, name, power, sprint, rotation, attackdist, attackpower, attacklength):
self.Mass=100
self.Energy=0
self.Distance=0
self.id = id
self.name = name
self.power = power
self.sprint = sprint
self.rotation = rotation
self.aerofactor = 0.0
self.AirResistForce=0.08
self.AttackDistance = attackdist
self.AttackLength = attacklength
self.AttackPower = attackpower
self.FinishTime = 0
self.Finished = False
self.RecoveryPower = 0
def GetName(self):
return self.name
def GetId(self):
return self.id
def GetRotation(self):
return self.rotation;
def GetAeroFactor(self):
return self.aerofactor
def ReduceRecoveryPower(self, change):
self.RecoveryPower = self.RecoveryPower - change
if self.RecoveryPower < 0:
self.RecoveryPower = 0
def IncreaseRecoveryPower(self, change):
self.RecoveryPower = self.RecoveryPower + change
def GetRecoveryPower(self):
return self.RecoveryPower
def SetRotation(self, r):
if r>self.rotation:
self.rotation = self.rotation + 1
if r<self.rotation:
self.rotation = self.rotation - 1
def SetFinishTime(self, timefin):
# record the finish time - but only if it hasn't already been set. This allows us to call this repeatedly nce the rider passes the finish
# without constantly updating the time.
if self.FinishTime == 0:
self.FinishTime = timefin
self.Finished = True
def GetFinishTime(self):
return self.FinishTime
def GetFinished(self):
return self.Finished
def AddEnergy(self, e):
self.Energy = self.Energy + e
if self.Energy < 0:
self.Energy = 0
def SubtractEnergy(self, e):
if self.Energy < e:
self.Energy=0
else:
self.Energy = self.Energy - e
def GetEnergy(self):
return self.Energy
def GetMass(self):
return self.Mass
def GetSpeed(self):
speed = math.sqrt(2*self.Energy/self.Mass) *0.7
return speed
def GetDistance(self):
return self.Distance
def GetPower(self):
return self.power
def GetSprint(self):
return self.sprint
def Update(self, Bikes, timediff):
bikespeed = self.GetSpeed()
air_resistance = bikespeed * bikespeed * self.AirResistForce
factor = 1.0
# if the bike is in front of this one then it might give some shelter:
for b in Bikes:
if b.GetId()!=self.id:
# the bike 'position' is actually at the back of the image
# the image is actually 100 pixels wide (50m long!)
# so we add a bit to the position of this bike to get a rough idea of where the front wheel is
frontofbike = self.GetDistance()*1000 + 35
backofotherbike = b.GetDistance() * 1000
otherbikegap = backofotherbike - frontofbike
if (otherbikegap<50 and otherbikegap>0):
# multiply the aero factor from this bike with what we have so far - this will get us the cumulative effect of all the bikes in front
# of this one...
factor = factor * otherbikegap/50
# finally multiply the air resistance by the calculated factor. If we have no bikes in front then this will still be 1.0
air_resistance = air_resistance * (factor*0.75+0.25)
self.aerofactor = factor
air_resist_energy = air_resistance/timediff
self.SubtractEnergy(air_resist_energy)
# ...and friction, which will be proportional to speed:
friction = bikespeed * 0.1
friction_energy = friction / timediff
self.SubtractEnergy(friction_energy)
bikespeed = self.GetSpeed()
self.Distance = self.Distance + (bikespeed/3600)*timediff
if ((self.Distance*1000)>self.AttackDistance and (self.Distance*1000)<(self.AttackDistance+self.AttackLength)):
self.AddEnergy(self.AttackPower*timediff)
Race.py:
#!/usr/bin/python
import RPi.GPIO as GPIO
import time
import pygame
import random
import math
import sys
from bike import Bike
from route import Route
pulse_count = 0
currtm = time.time()
lastinterval=0
race_started=False
white = 255, 255, 255
green = (0, 255, 0)
dgreen = (19, 121, 19)
red = (255, 0, 0)
blue = (0, 0, 255)
black = (0, 0, 0)
grey = (240, 240, 240)
# light shade of the button
color_light = (170,170,170)
# dark shade of the button
color_dark = (100,100,100)
def InitDisplay():
# initialisation
pygame.init()
screen = pygame.display.set_mode((800,450)) # Set screen size of pygame window
background = pygame.Surface(screen.get_size()) # Create empty pygame surface
background.fill((255,255,255)) # Fill the background white color (red,green,blue)
background = background.convert() # Convert Surface to make blitting faster
screen.blit(background, (0, 0))
# Print in titlebar
text = "Cycling"
pygame.display.set_caption(text)
return screen
def write(msg="pygame is cool", size=24, color=(0,0,0)):
myfont = pygame.font.SysFont("None", size)
mytext = myfont.render(msg, True, color)
mytext = mytext.convert_alpha()
return mytext
def bike_pulse(channel):
global currtm
global lastinterval
global race_started
newtm = time.time()
interval = newtm - currtm
#print ("pulse " + str(interval))
race_started = True
currtm = newtm
if (interval>0.2 and interval<3.0):
lastinterval=interval
else:
lastinterval=0
def GetFinalLeaderboard(playerBike, computerBikes):
# unlike the race leaderboard, the final finishing positions are determined by the finish times
racePosition = []
for b in computerBikes:
racePosition.append(b)
racePosition.append(playerBike)
racePosition.sort(key=sortFuncTime, reverse=False)
return racePosition
def sortFuncTime(b):
if b.GetFinishTime()==0:
return 999999999999
else:
return b.GetFinishTime()
def GetLeaderboard(playerBike, computerBikes):
racePosition = []
for b in computerBikes:
racePosition.append(b)
racePosition.append(playerBike)
racePosition.sort(key=sortFuncDist, reverse=True)
return racePosition
def sortFuncDist(b):
return b.GetDistance()
def GetRaceLength(screen):
#lengthchoice = pygame.image.load("/home/pi/bike/racelength.gif").convert()
screen.fill(white)
#screen.blit(racelength, (0,0))
screen.blit(write("Choose Distance:", size=48), (160,100))
pygame.display.flip()
nochoice = True
while nochoice==True:
# stores the (x,y) coordinates into
# the variable as a tuple
mouse = pygame.mouse.get_pos()
for ev in pygame.event.get():
#checks if a mouse is clicked
if ev.type == pygame.MOUSEBUTTONDOWN:
#print (mouse[0], mouse [1])
if 360 <= mouse[0] <= 520 and 200 <= mouse[1] <= 230:
choice = 2000
nochoice = False
if 360 <= mouse[0] <= 520 and 250 <= mouse[1] <= 280:
choice = 10000
nochoice = False
if 360 <= mouse[0] <= 520 and 300 <= mouse[1] <= 330:
choice = 15000
nochoice = False
if 360 <= mouse[0] <= 520 and 350 <= mouse[1] <= 380:
choice = 20000
nochoice = False
if 360 <= mouse[0] <= 520 and 400 <= mouse[1] <= 430:
choice = 25000
nochoice = False
if 360 <= mouse[0] <= 520 and 200 <= mouse[1] <= 230:
pygame.draw.rect(screen,color_light,[360,200,160,30])
else:
pygame.draw.rect(screen,color_dark,[360,200,160,30])
if 360 <= mouse[0] <= 520 and 250 <= mouse[1] <= 280:
pygame.draw.rect(screen,color_light,[360,250,160,30])
else:
pygame.draw.rect(screen,color_dark,[360,250,160,30])
if 360 <= mouse[0] <= 520 and 300 <= mouse[1] <= 330:
pygame.draw.rect(screen,color_light,[360,300,160,30])
else:
pygame.draw.rect(screen,color_dark,[360,300,160,30])
if 360 <= mouse[0] <= 520 and 350 <= mouse[1] <= 380:
pygame.draw.rect(screen,color_light,[360,350,160,30])
else:
pygame.draw.rect(screen,color_dark,[360,350,160,30])
if 360 <= mouse[0] <= 520 and 400 <= mouse[1] <= 430:
pygame.draw.rect(screen,color_light,[360,400,160,30])
else:
pygame.draw.rect(screen,color_dark,[360,400,160,30])
screen.blit(write("2 km", size=48), (400,200))
screen.blit(write("10 km", size=48), (400,250))
screen.blit(write("15 km", size=48), (400,300))
screen.blit(write("20 km", size=48), (400,350))
screen.blit(write("25 km", size=48), (400,400))
pygame.display.update()
screen.fill(white)
screen.blit(write( str(choice/1000) + "km", size=48), (300,200))
pygame.display.update()
time.sleep(5)
return choice
def DisplayPodium(screen, playerBike, computerBikes, raceStartTime):
podium = pygame.image.load("/home/pi/bike/podium.gif").convert()
screen.fill(white)
screen.blit(podium, (0,0))
screen.blit(write("Winner", size=48), (160,400))
racePosition = GetFinalLeaderboard(playerBike, computerBikes)
txt = racePosition[0].GetName()
screen.blit(write(txt, size=48), (500,400))
pygame.display.flip()
time.sleep(7)
screen.fill(white)
winningTime = racePosition[0].GetFinishTime()
raceElapsedTime = winningTime - raceStartTime
m, s = divmod(raceElapsedTime, 60)
h, m = divmod(m, 60)
strRaceTime = '{:.0f}h:{:.0f}m:{:.3f}s'.format(h, m, s)
screen.blit(write("Position: Rider: Time:"), (145, 65))
position = 0
for b in racePosition:
if (position%2)==0:
pygame.draw.rect(screen, grey, (0, 100+position*30, 800, 30))
screen.blit(write(str(position+1), size=24), (180, 100 + position*30))
screen.blit(write(b.GetName(), size=24), (200, 100 + position*30))
finishTime = b.GetFinishTime()
if finishTime==0:
displayTime = "DNF"
else:
gap = round(finishTime - winningTime,3)
displayTime = str(gap)
if position>0:
screen.blit(write("+" + displayTime, size=24), (400, 100 + position*30))
else:
screen.blit(write(strRaceTime, size=24), (400, 100 + position*30))
position = position + 1
pygame.display.flip()
time.sleep(10)
def bikeRotation (height_diff, dist_diff):
if height_diff==0 or dist_diff==0:
return 0
rot = math.atan(height_diff/(dist_diff*1000))*180/3.14
rot = rot * -0.3
return rot
def DrawLeaderboard(screen, leaderboard, x, y):
race_pos=1
leaderDist = leaderboard[0].GetDistance()
for b in leaderboard:
distdiff = int( round( ((leaderDist - b.GetDistance()) * 1000), 0) )
nametxt = str(race_pos) + " " + b.GetName()
postxt = "+" + str(distdiff) + "m"
recoverytxt = str(b.GetRecoveryPower())
screen.blit(write(nametxt), (x, y + race_pos*15))
screen.blit(write(postxt), (x+150, y + race_pos*15))
#screen.blit(write(recoverytxt), (x+250, y + race_pos*15))
race_pos = race_pos + 1
def plotX(groundpos):
return groundpos*2
def run(screen, playerBike, computerBikes, Race_Length):
global lastinterval
global race_started
route = Route(Race_Length)
bluebike = pygame.image.load("/home/pi/bike/bikebluesmall.gif").convert()
redbike = pygame.image.load("/home/pi/bike/bikeredsmall.gif").convert()
greybike = pygame.image.load("/home/pi/bike/bikegreysmall.gif").convert()
tree = pygame.image.load("/home/pi/bike/tree.gif").convert()
giftshop = pygame.image.load("/home/pi/bike/giftshop.gif").convert()
cafe = pygame.image.load("/home/pi/bike/cafe.gif").convert()
bookshop = pygame.image.load("/home/pi/bike/bookshop.gif").convert()
finish = pygame.image.load("/home/pi/bike/finish.gif").convert()
flamerouge = pygame.image.load("/home/pi/bike/flamerouge.gif").convert()
crowd = pygame.image.load("/home/pi/bike/crowd.gif").convert()
WHITE = (255, 255, 255)
bluebike.set_colorkey(WHITE) # White colors will not be blit.
redbike.set_colorkey(WHITE) # White colors will not be blit.
greybike.set_colorkey(WHITE) # White colors will not be blit.
tree.set_colorkey(WHITE) # White colors will not be blit.
bookshop.set_colorkey(WHITE) # White colors will not be blit.
cafe.set_colorkey(WHITE) # White colors will not be blit.
giftshop.set_colorkey(WHITE) # White colors will not be blit.
finish.set_colorkey(WHITE) # White colors will not be blit.
flamerouge.set_colorkey(WHITE) # White colors will not be blit.
crowd.set_colorkey(WHITE) # White colors will not be blit.
running = True
currtime = time.time()
lastinterval = 0
race_started = False
while running:
newtm = time.time()
timediff = newtm - currtime
currtime = newtm
#print (timediff, computerBikes[0].GetDistance(), computerBikes[0].GetSpeed(), computerBikes[0].GetEnergy())
leaderboard = GetLeaderboard(playerBike, computerBikes)
#lines for auto-play:
#race_started=True
#lastinterval=5
# add in energy from pedalling
if lastinterval>0:
cyclist_energy = playerBike.GetPower()/lastinterval
lastinterval = 0
else:
cyclist_energy = 0
playerBike.AddEnergy(cyclist_energy)
if race_started==True:
for b in computerBikes:
if b.GetFinished()==False:
b.AddEnergy((b.GetPower()+b.GetRecoveryPower())*timediff)
# computer bikes will start to sprint for the line in the final 10% of the race:
if b.GetDistance()*1000 > Race_Length * 0.9:
b.AddEnergy(b.GetSprint()*timediff)
if b.GetAeroFactor()>0.8:
b.ReduceRecoveryPower(10)
if b.GetAeroFactor()<0.5:
b.IncreaseRecoveryPower(10)
comp_dist = b.GetDistance()
comp_height = route.GetHeight(int(comp_dist*1000))
b.Update(leaderboard, timediff)
comp_new_dist = b.GetDistance()
comp_new_height = route.GetHeight(int(comp_new_dist*1000))
comp_height_diff = comp_height - comp_new_height
comp_dist_diff= comp_new_dist - comp_dist
b.SetRotation(bikeRotation(comp_height_diff, comp_dist_diff))
comp_pot_energy = b.GetMass() * comp_height_diff * 3
b.AddEnergy(comp_pot_energy)
player_dist = playerBike.GetDistance()
player_height = route.GetHeight(int(player_dist*1000))
playerBike.Update(leaderboard, timediff)
player_new_dist = playerBike.GetDistance()
player_new_height = route.GetHeight(int(player_new_dist*1000))
player_height_diff = player_height - player_new_height
player_dist_diff = player_new_dist - player_dist
playerBike.SetRotation(bikeRotation(player_height_diff,player_dist_diff))
player_pot_energy = playerBike.GetMass() * player_height_diff * 3
playerBike.AddEnergy(player_pot_energy)
lastinterval=0
for event in pygame.event.get():
if event.type == pygame.QUIT:
#
running = False
screen.fill(white)
txt = "Speed {:.2f} km/h"
displayStr = txt.format(playerBike.GetSpeed())
screen.blit(write(displayStr), (100,390))
txt = "Height {:.2f}"
displayStr = txt.format(round(player_new_height,1))+"m"
screen.blit(write(displayStr), (100,410))
txt = "Distance : {:.2f}"
displayStr = txt.format(player_new_dist) + "km"
screen.blit(write(displayStr), (100,430))
DrawLeaderboard(screen, leaderboard, 500, 350)
leftedge = player_dist
for b in computerBikes:
if leftedge>b.GetDistance():
leftedge = b.GetDistance()
# if the computer falls more than 300m behind the player then he will fall off the screen:
if leftedge < player_dist - 0.3:
leftedge = player_dist - 0.3
left = int(leftedge * 1000)
groundpos =left-100
routelen = route.GetLength()
while groundpos < left + 550:
groundheight = route.GetHeight(groundpos)
# check for scenery
item = route.GetScenery(groundpos)
if item == "tree":
screen.blit(tree, (plotX(groundpos-left-90),300-(groundheight/4)-50))
if item == "cafe":
screen.blit(cafe, (plotX(groundpos-left-100),300-(groundheight/4)-70))
if item == "bookshop":
screen.blit(bookshop, (plotX(groundpos-left-100),300-(groundheight/4)-70))
if item == "giftshop":
screen.blit(giftshop, (plotX(groundpos-left-100),300-(groundheight/4)-70))
if item == "finish":
screen.blit(finish, (plotX(groundpos-left-100),300-(groundheight/4)-120))
if item == "flamerouge":
screen.blit(flamerouge, (plotX(groundpos-left-100),300-(groundheight/4)-120))
if item == "crowd":
screen.blit(crowd, (plotX(groundpos-left-90),300-(groundheight/4)-60))
groundpos = groundpos + 1
groundpos =left
while groundpos < left + 500:
groundheight = route.GetHeight(groundpos)
# Draw the ground green with a red line at the finish
if groundpos == route.GetLength()+52:
pygame.draw.rect(screen, red, (plotX(groundpos-left), 300-(groundheight/4)+50, 10, 20))
else:
pygame.draw.rect(screen, green, (plotX(groundpos-left), 300-(groundheight/4)+50, 10, 20))
groundpos = groundpos + 1
for b in computerBikes:
compDist = b.GetDistance()
compHeight = route.GetHeight(int(compDist*1000))
computerbikeX = plotX(int((compDist-leftedge) * 1000))
computerbikeY = 300 - compHeight/4 + b.GetId()*3
#print (compDist, compHeight, computerbikeY)
rotated_comp = pygame.transform.rotate(bluebike, b.GetRotation() )
screen.blit(rotated_comp, (computerbikeX,computerbikeY))
#pygame.draw.rect(screen, red, (computerbikeX, computerbikeY, 5, 5))
playerbikeX = plotX(int((player_dist - leftedge) * 1000))
playerbikeY = 300-player_height/4+20
if playerBike.GetFinished()==True:
rotated_player = pygame.transform.rotate(greybike, playerBike.GetRotation())
else:
rotated_player = pygame.transform.rotate(redbike, playerBike.GetRotation())
screen.blit(rotated_player, (playerbikeX,playerbikeY))
#pygame.draw.rect(screen, blue, (playerbikeX+100, playerbikeY, 5, 5))
aero = playerBike.GetAeroFactor()
aerobarlength = aero * 100
pygame.draw.rect(screen, black, (197, 38, 106, 24))
pygame.draw.rect(screen, green, (200, 40, aerobarlength, 20))
pygame.display.flip()
# record finish time for each rider:
if (playerBike.GetDistance()*1000)>= route.GetLength():
playerBike.SetFinishTime(currtime)
print ("Player Finished " + str(currtime))
for b in computerBikes:
if (b.GetDistance()*1000)>= route.GetLength():
b.SetFinishTime(currtime)
# race finishes when all riders reach the end
allFinished = True
if (playerBike.GetDistance()*1000)<= route.GetLength():
allFinished = False
else:
# player has finished, allow any bikes within a few meters to finish too
for b in computerBikes:
if b.GetDistance()*1000<= route.GetLength() and b.GetDistance()*1000> route.GetLength()-400:
allFinished = False
if allFinished:
running = False
def main():
# Setup GPIO input
try:
GPIO.setmode(GPIO.BCM)
GPIO.setup(4, GPIO.IN, pull_up_down = GPIO.PUD_UP) # pin 7
GPIO.setup(14, GPIO.IN, pull_up_down = GPIO.PUD_UP) # pin 8
GPIO.setup(15, GPIO.IN, pull_up_down = GPIO.PUD_UP) # pin 10
GPIO.add_event_detect(4, GPIO.FALLING, callback=bike_pulse, bouncetime=200)
GPIO.add_event_detect(14, GPIO.FALLING, callback=left_button, bouncetime=200)
GPIO.add_event_detect(15, GPIO.FALLING, callback=right_button, bouncetime=200)
except Exception as e:
print('exception thrown by GPIO'.format(e))
return
screen = InitDisplay()
raceLength = GetRaceLength(screen)
while True:
# id, name, power, sprint, rotation, attackdist, attackpower, attacklength
playerBike = Bike(1, "Player", 7000, 0, 0, 0, 0, 0)
computerBike1 = Bike(2, "Chris Frome", 7500, 2000, 0, random.randint(0, raceLength), 9000, 1000)
computerBike2 = Bike(3, "Peter Sagan", 7000, 3000, 0, random.randint(0, raceLength), 9000, 1000)
computerBike3 = Bike(4, "Geraint Thomas", 6700, 1000, 0, random.randint(0, raceLength), 9000, 1000)
computerBike4 = Bike(5, "Vincenzo Nibali", 8000, 1000, 0, random.randint(0, raceLength), 9000, 1000)
computerBikes = [ computerBike1, computerBike2, computerBike3, computerBike4 ]
raceStartTime = time.time()
run(screen, playerBike, computerBikes, raceLength)
DisplayPodium(screen, playerBike, computerBikes, raceStartTime)
raceLength = GetRaceLength(screen)
if __name__=="__main__":
main()
Route.py:
#!/usr/bin/python
import random
import math
class Route:
def GenerateRoute(self,length):
currentgradient = 0.0
currentheight = 0.0
self.route= []
position = 0
while position < length:
currentheight = currentheight + currentgradient
if currentheight>1000:
currentheight = 1000
currentgradient = 0.0
if currentheight<0:
currentheight=0
currentgradient = 0.0
self.route.append(currentheight)
#print (currentheight, currentgradient)
if random.random()>0.8:
# change the gradient
# gradient can only be between -1 and 1
currentgradient = currentgradient + random.random()*0.1-0.05
if currentgradient>1.0:
currentgradient = 1.0
if currentgradient<-1.0:
currentgradient = -1.0
position = position + 1
def GenerateScenery(self,length):
self.scenery={}
position = 0
while position < self.length-1000:
if random.random()<0.007:
#put a tree here
self.scenery[position]="tree"
else:
if random.random()<0.0007:
#put a cafe here
self.scenery[position]="cafe"
position = position + 120
else:
if random.random()<0.0007:
#put a bookshop here
self.scenery[position]="bookshop"
position = position + 120
else:
if random.random()<0.0007:
#put a giftshop here
self.scenery[position]="giftshop"
position = position + 120
position = position + 1
# put the finish line
self.scenery[length+50]="finish"
self.scenery[length-900] = "flamerouge"
self.scenery[length-200] = "crowd"
def GetHeight(self,position):
if position>=self.length:
return self.route[self.length-1]
else:
return self.route[position]
def GetLength(self):
return self.length
def GetScenery(self,position):
if position in self.scenery:
return self.scenery[position]
else:
return ""
def __init__(self, len):
self.length = len
self.GenerateRoute(len)
self.GenerateScenery(len)
